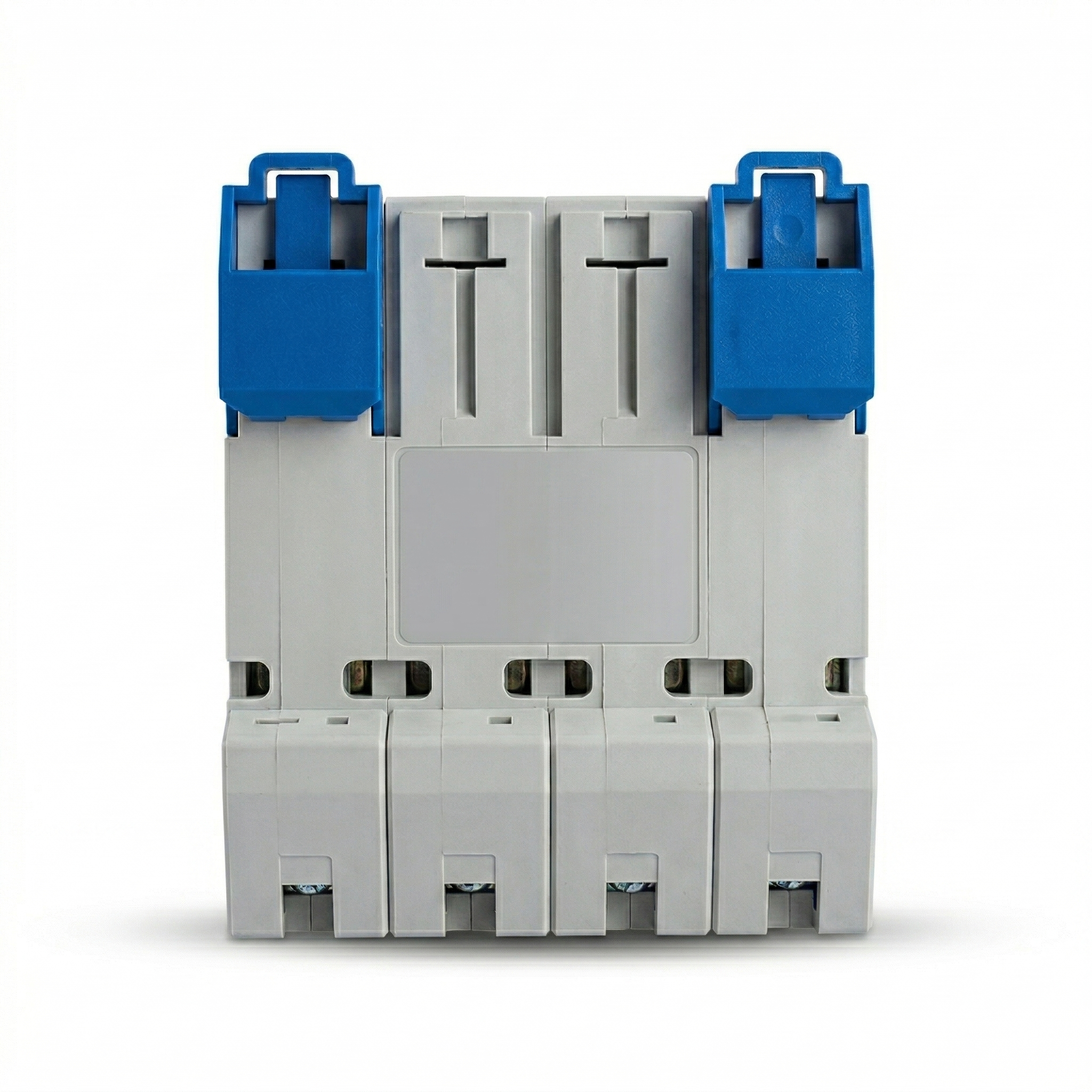

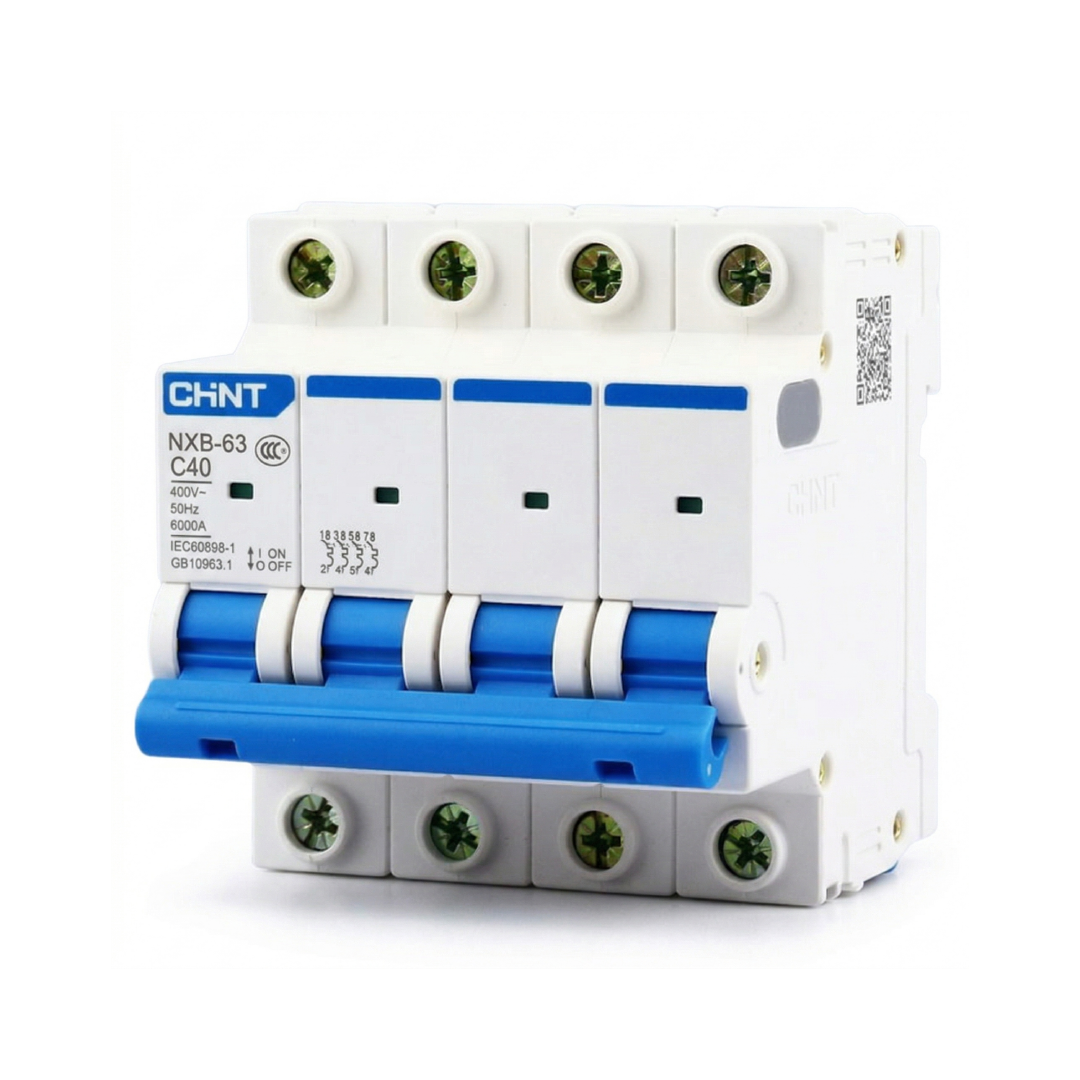

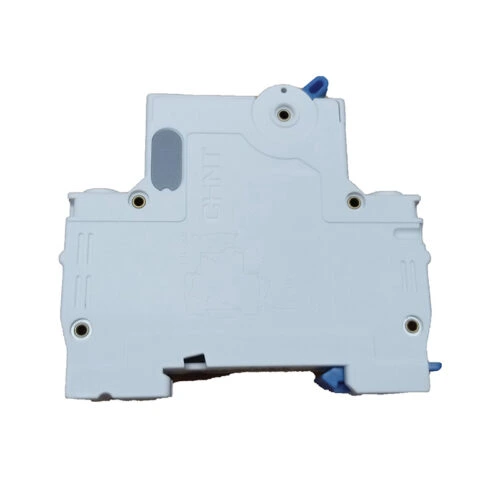

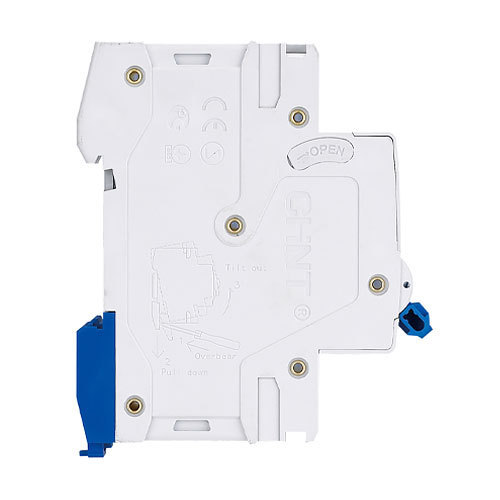

Chint NXB-40 Amp MCB 4P

~~৳1300~~ ৳1120

Ratting : (0)

Brand : CHINT

Pay From

Fast Delivery all across the country
Safe Payment
100% Authentic Product

- +

হোয়াটসঅ্যাপে অর্ডার করুন

কল অর্ডার

Product Details:
✅ Function: Protection against overload and short-circuit faults
✅ Standard compliance: IEC/EN 60898-1
✅ Certification: CE, SNI, NOM, EAC, SII, RoHS, REACH, Carbon footprint
✅ Rated current (In): 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
✅ Rated voltage (Ue):
✅ 220V~/230V~/240V~ (1P, 1P+N, 2P)
✅ 380V~/400V~/415V~ (2P–4P, 3P+N)
✅ Frequency: 50/60 Hz
✅ Tripping characteristics: B, C, D curves
✅ Number of poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
✅ Rated short-circuit breaking capacity (Icn): 6kA / 10kA (depending on model)
✅ Rated service short-circuit capacity (Ics): 6kA / 7.5kA
✅ Rated insulation voltage (Ui): 500V
✅ Rated impulse withstand voltage (Uimp): 4kV
✅ Mechanical life: 20,000 operations
✅ Electrical life: 10,000 operations
✅ Mounting: 35 mm DIN rail (TH35-7.5)
✅ Connection type: Top or bottom wiring
✅ Terminal capacity:
✅ Minimum: 1 mm²
✅ Maximum: 25 mm²
✅ Tightening torque: 2.0 N·m
✅ Operating temperature: −35°C to +70°C
✅ Storage temperature: −35°C to +85°C
✅ Altitude: ≤2000m
✅ Protection degree:
✅ IP20 (direct mounting)
✅ IP40 (inside distribution box)
✅ Pollution degree: Class II
✅ Compatible accessories: AX-X1, AL-X1, SHT-X1, OVT-X1, UVT-X1, OUVT-X1
✅ Power consumption (per pole):
✅ 3W (1–10A), up to 13W (63A)
✅ Dimensions: Compact modular design; compatible with standard distribution boards
