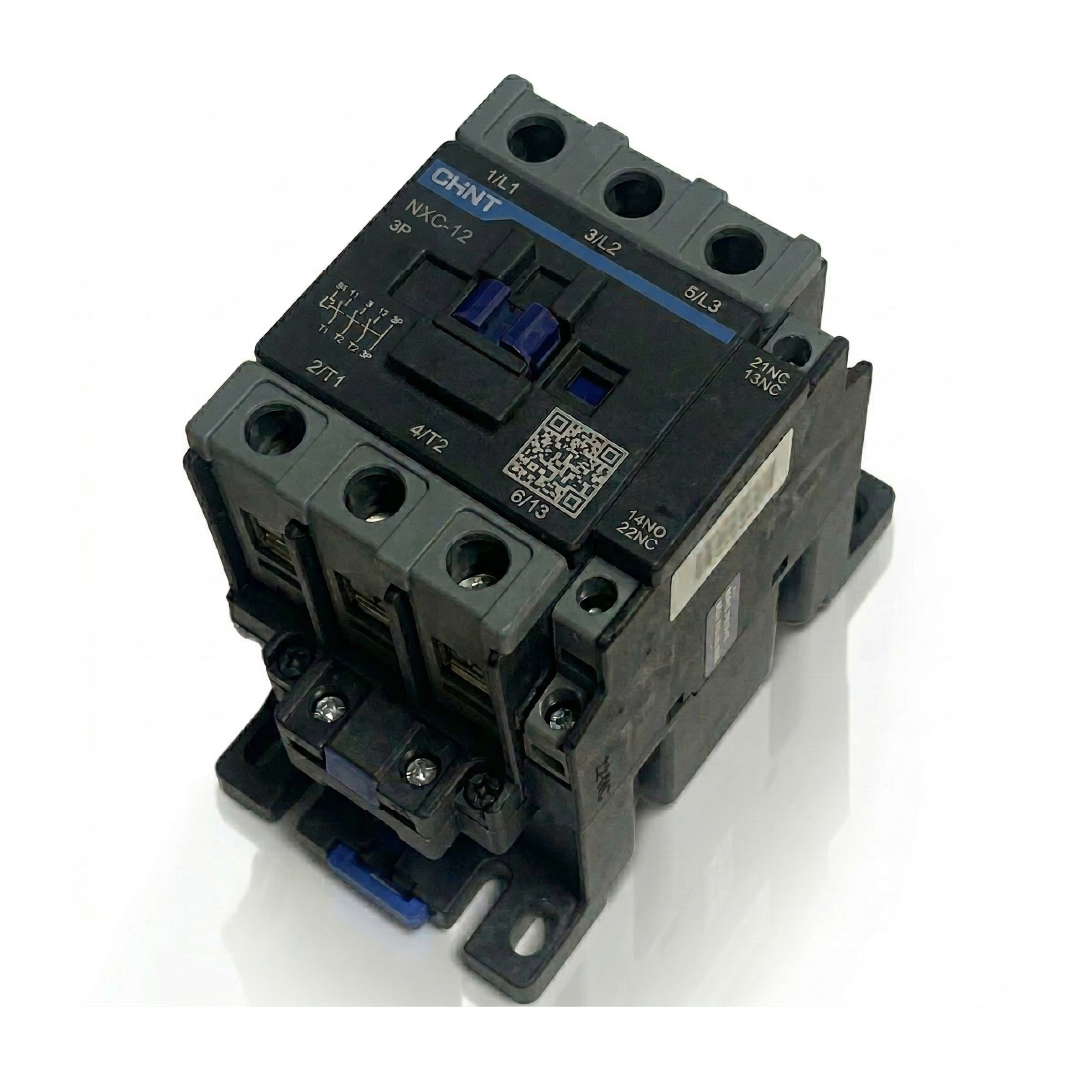

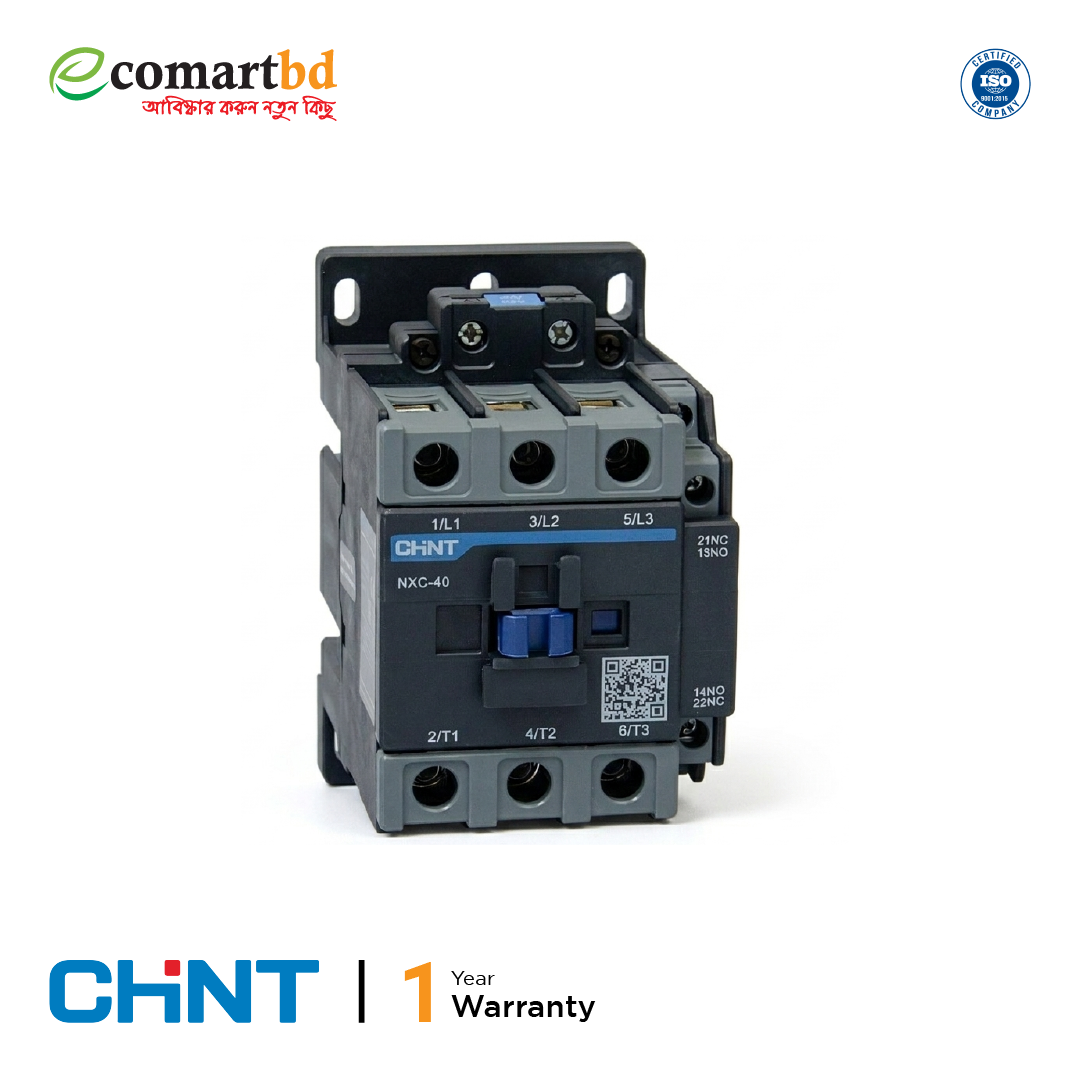

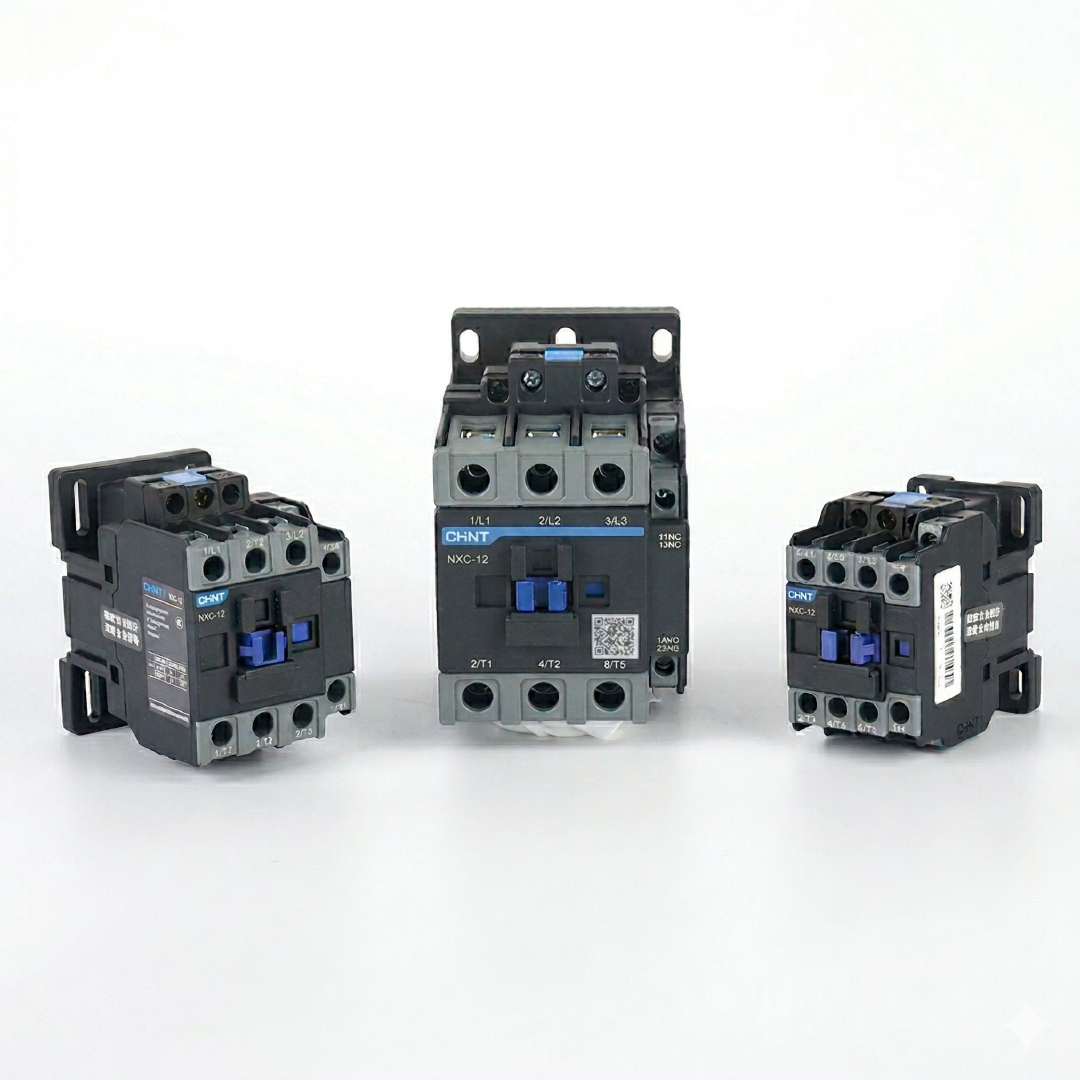

Product Details:
✅ Standard: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1
✅ Certification: CE
✅ Rated Operating Current (IE): 6 A – 630 A
✅ Rated Operating Voltage (Ue): 220 V – 690 V
✅ Rated Insulation Voltage (Ui):
✅ 690 V for NXC-06M~100
✅ 1000 V for NXC-120~630
✅ Number of Poles: 3P and 4P (available for NXC-06M~16M and NXC-09–40)
✅ Coil Control Method:
✅ AC Coil: NXC-06(M)-225
✅ DC Coil: NXC-06M–16M
✅ AC/DC Coil: NXC-265–630
✅ Rated Frequency: 50/60 Hz
✅ Mounting Type:
✅ NXC-06M–100: DIN Rail or Screw Mount
✅ NXC-120–630: Screw Mount Only
✅ Protection Degree:
✅ NXC-06M~12M: IP20
✅ NXC-06~38: Front IP20
✅ NXC-40~100: IP10
✅ NXC-120~630: IP00
✅ Pollution Degree: 3
✅ Installation Category: III
✅ Altitude: ≤ 2000 m
✅ Ambient Temperature:
✅ Operation: −35 °C to +70 °C
✅ Normal Range: −5 °C to +40 °C
✅ 24-Hour Average ≤ +35 °C
✅ Humidity: ≤ 50% at +70 °C (up to 90% at +20 °C)
✅ Tilt: ≤ ±5° from vertical
✅ Shock and vibration: Installed in an area free from strong shock or vibration
✅ Auxiliary contacts:
✅ 06A–100A: 1 NO + 1 NC
✅ 120A–630A: 2 NO + 2 NC
✅ Coil voltage options:
✅ AC: 24, 36, 48, 110, 127, 220, 230, 240, 380, 415, 440, 480, 660 V
✅ DC: 24, 48, 110, 220 V
✅ Electrical life (AC-3): up to 1.2 × 10⁶ cycles
✅ Mechanical life: 10 × Up to 10⁶ cycles
✅ Fuse for short-circuit protection: NT00–NT02 gG/gL

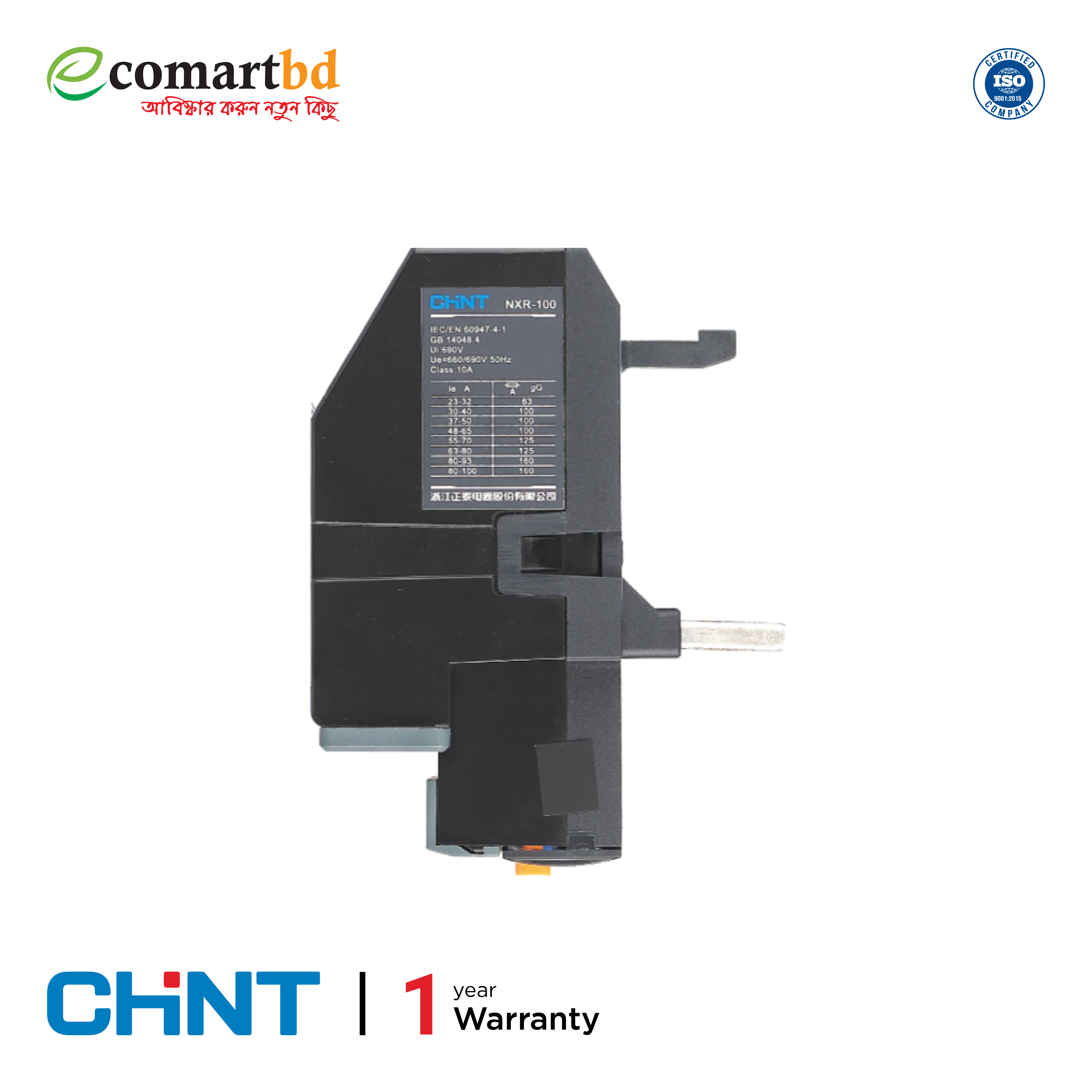

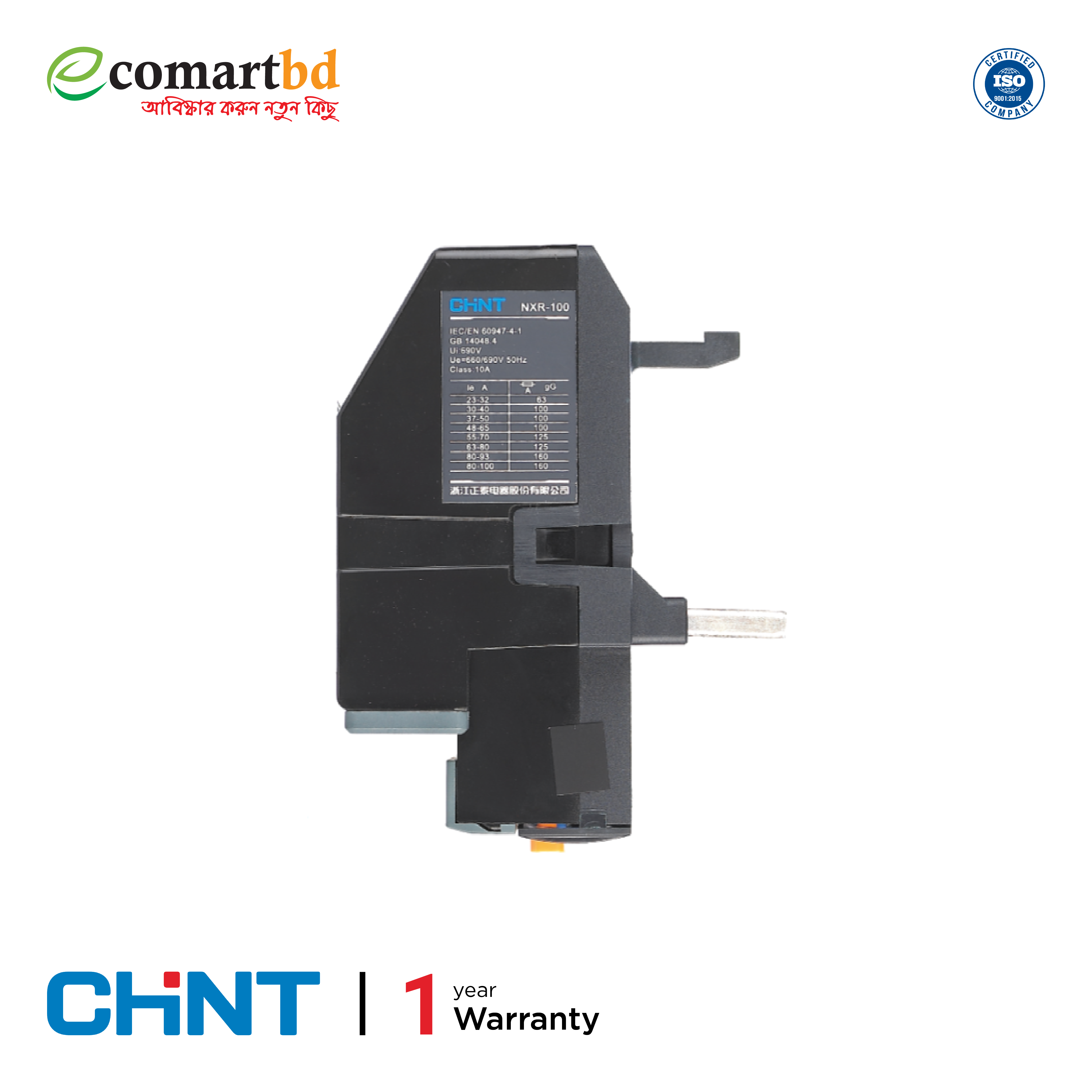

✅ Compatible overload relay: NXR series (NXR-12 to NXR-630)
✅ Typical motor power rating (AC-3, 400 V): 2.2 kW – 335 kW
✅ Application: Industrial automation, HVAC, compressors, machine tools and motor control centers

Warranty:
1 year official brand warranty.

Note:
1. The warranty will not be valid for damage caused by incorrect installation.
2. It is better to give a maximum of 80% load. If the load is correct, the device will serve for a long time InshaAllah.
3. The warranty will not be valid for overload/lightning/terminal burnout or external damage.
4. For any problem or assistance, please call the support center.
5. To get warranty, you must have a warranty card with hologram sticker and date.

Delivery:
Delivery is done in condition through any courier service throughout Bangladesh. The buyer has to bear all the expenses. However, if the quantity is more, home delivery is done by own transport.

Payment method:
100% cash on delivery (home delivery) facility is available for any product up to 2500/= taka throughout Bangladesh. (Conditions Apply)
